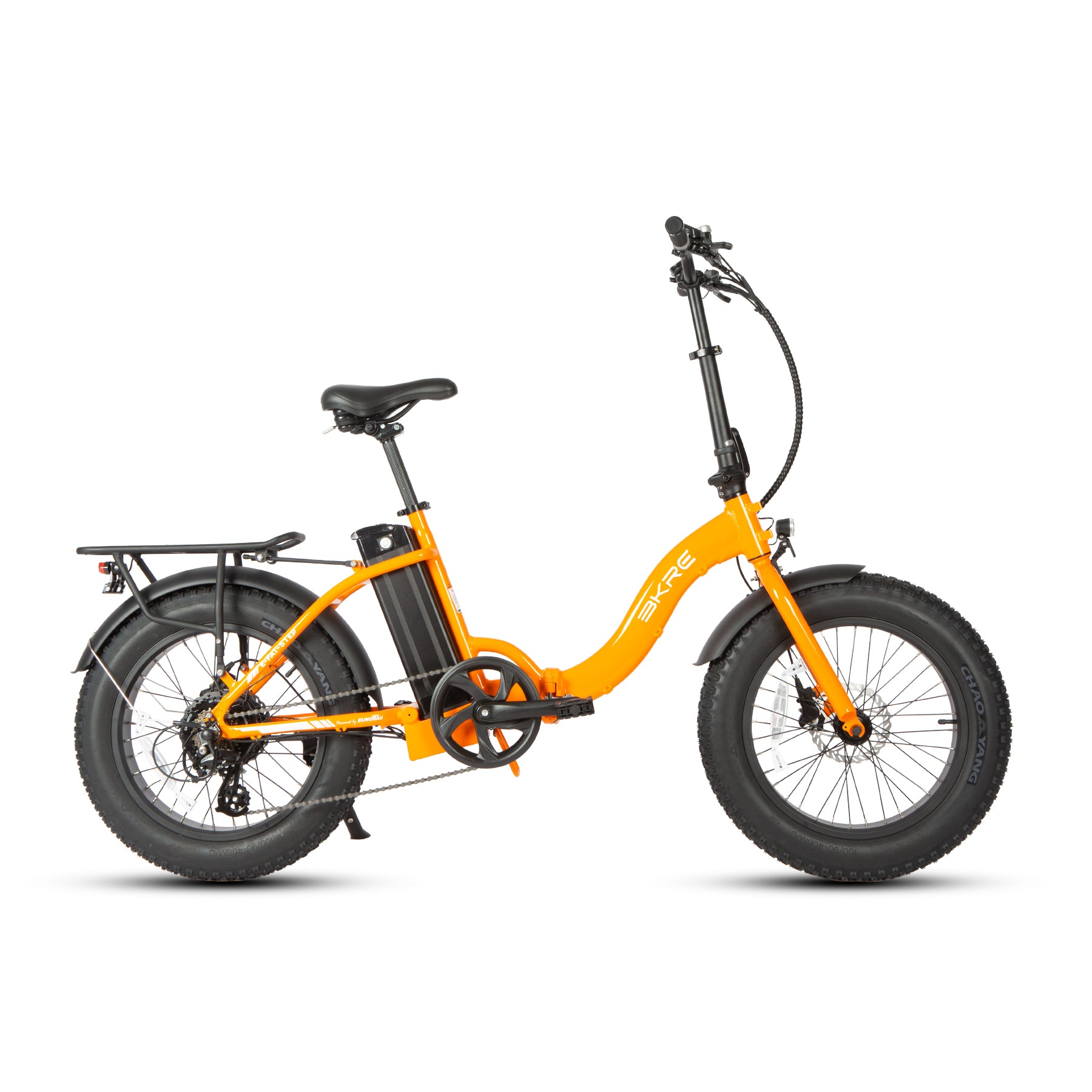

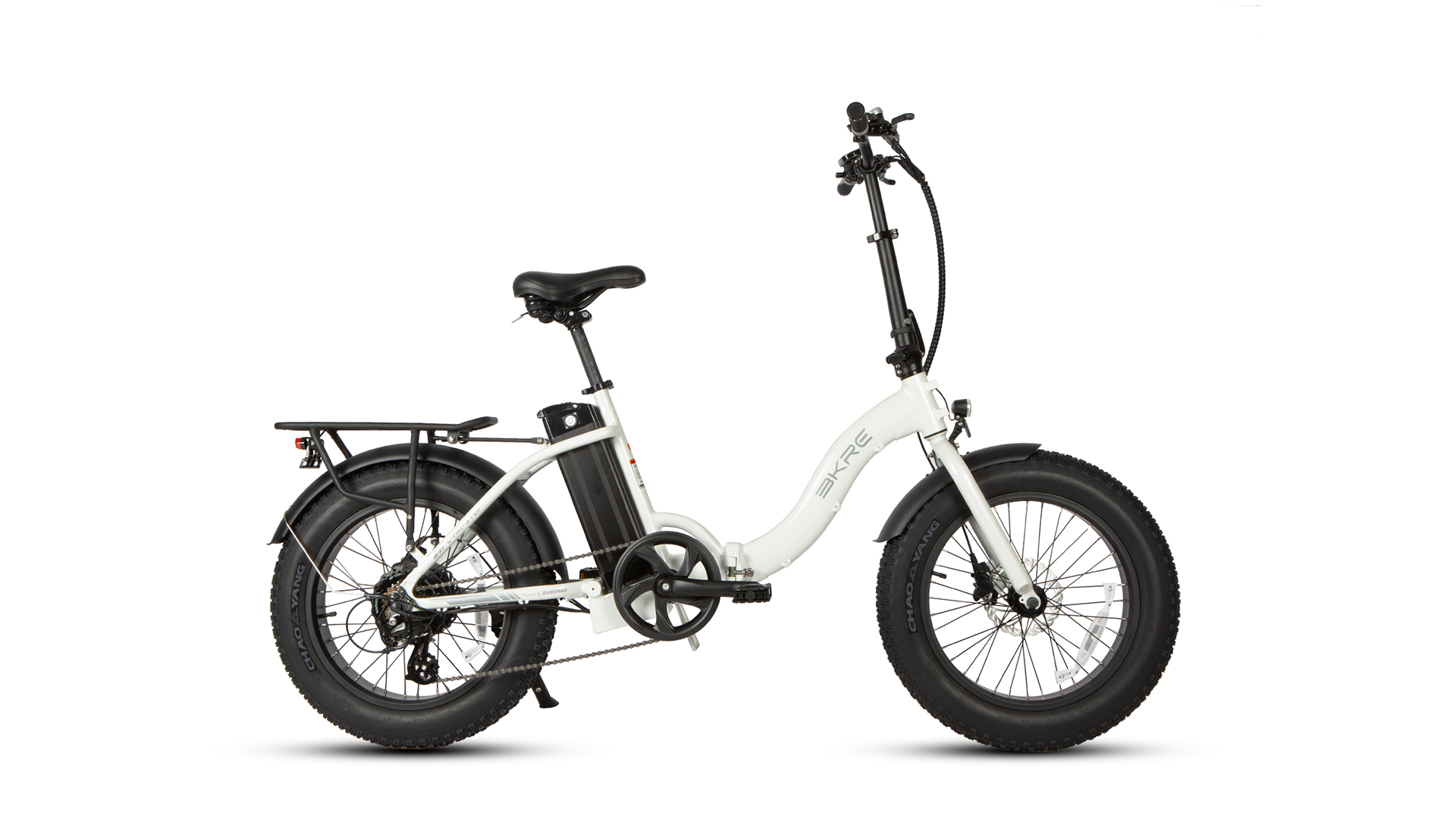

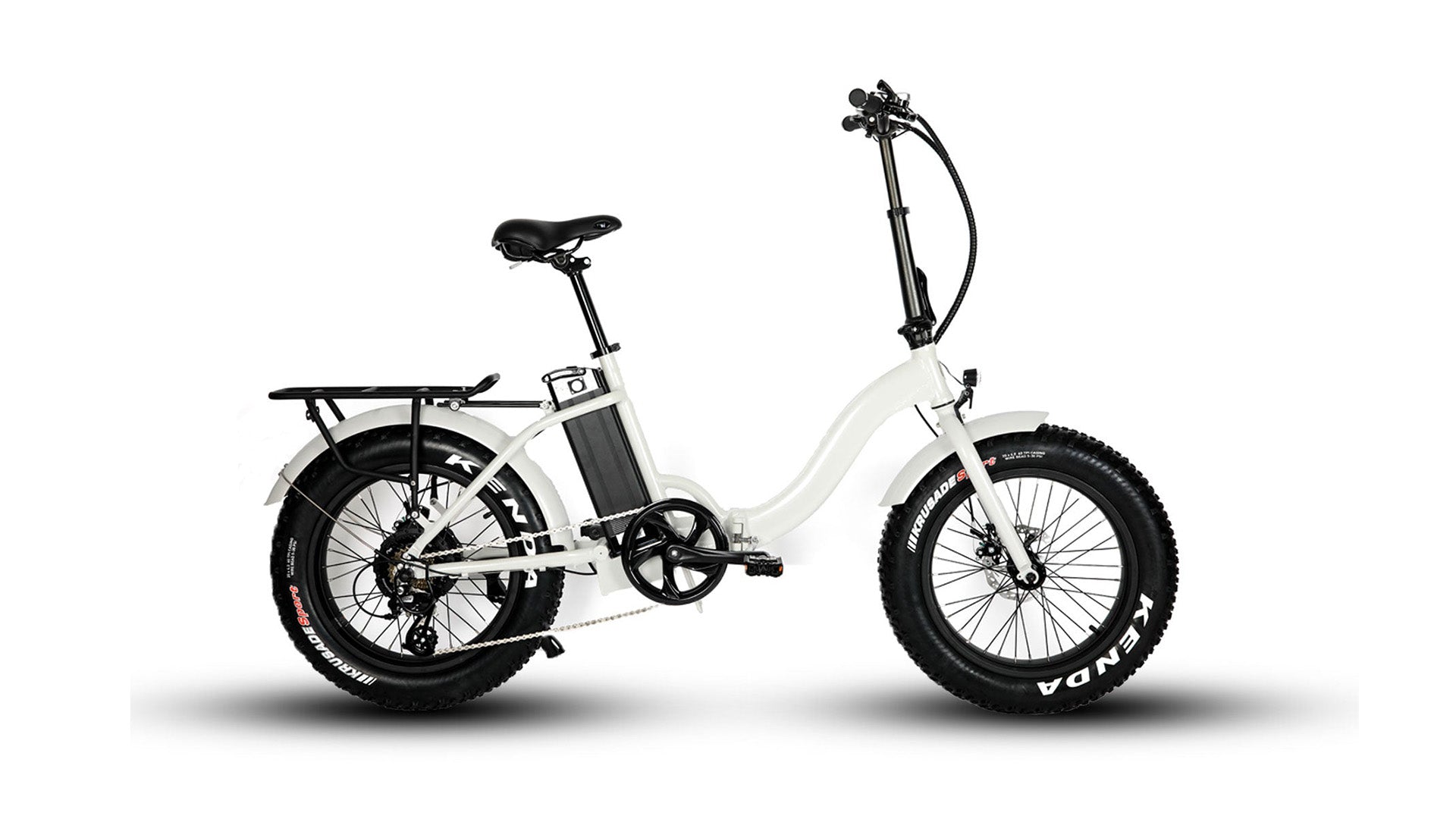

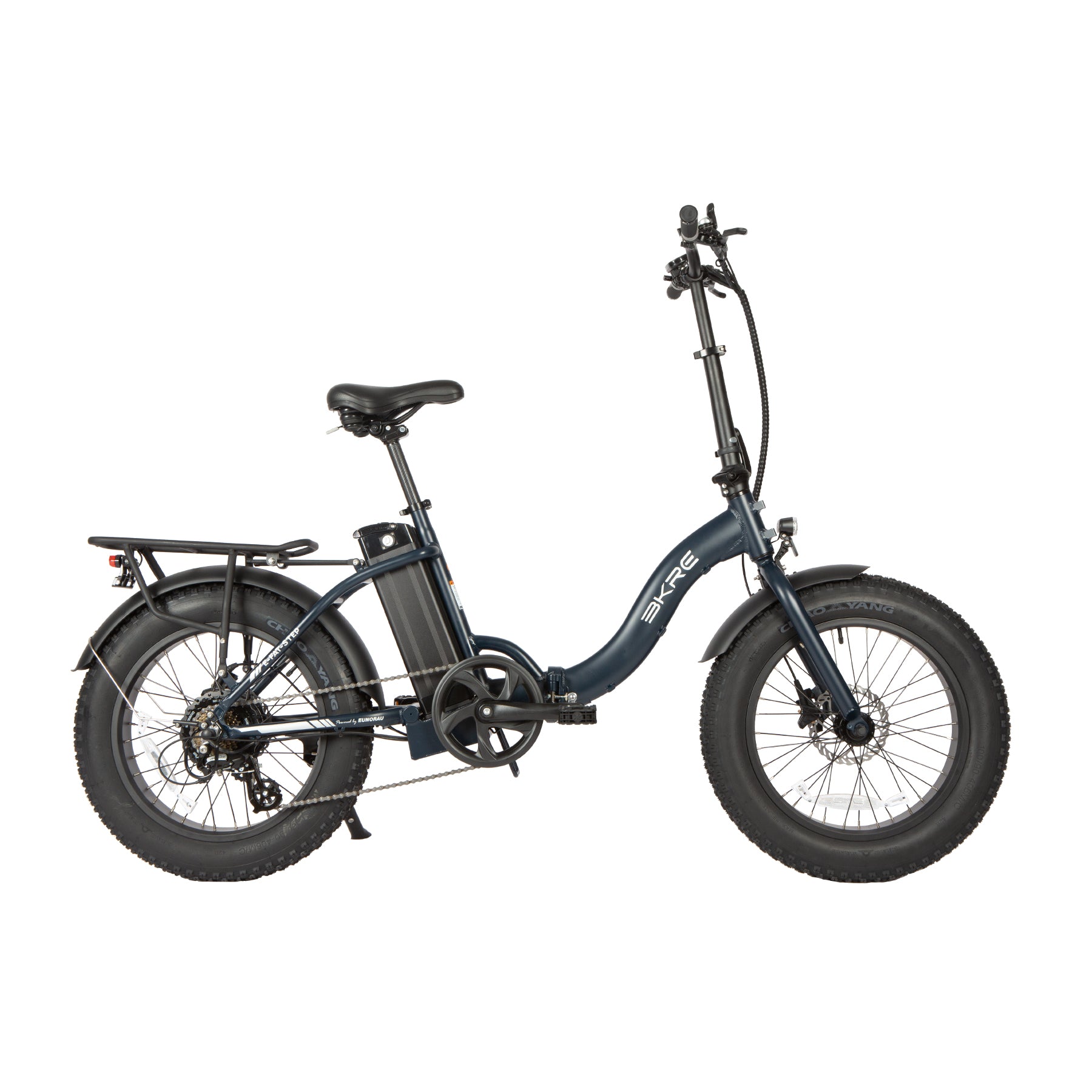

E-FAT-STEP
-
Free Shipping: On all orders over $100

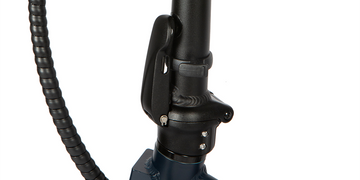

Adjustable Folding Stem
An adjustable stem allows riders to customize the height with zero tools.The height adjustment range is 0-135mm, the maximum length is 420mm, which performs well in practical use.And is able to fold the 170 degrees to the right, which is very useful and convenient.

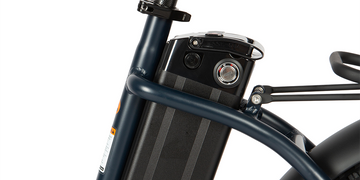

12.5Ah High Capacity Battery
Running on a 48-volt system, as well as a 12.5Ah battery, this ebike can reach up to an estimated max of 40 miles (64 km) with pedal assist. The locking removable battery located beneath the bikeâs saddle, not only keeps the centre of gravity low and overall weight well- balanced, but also makes it convenient and easy to charge.

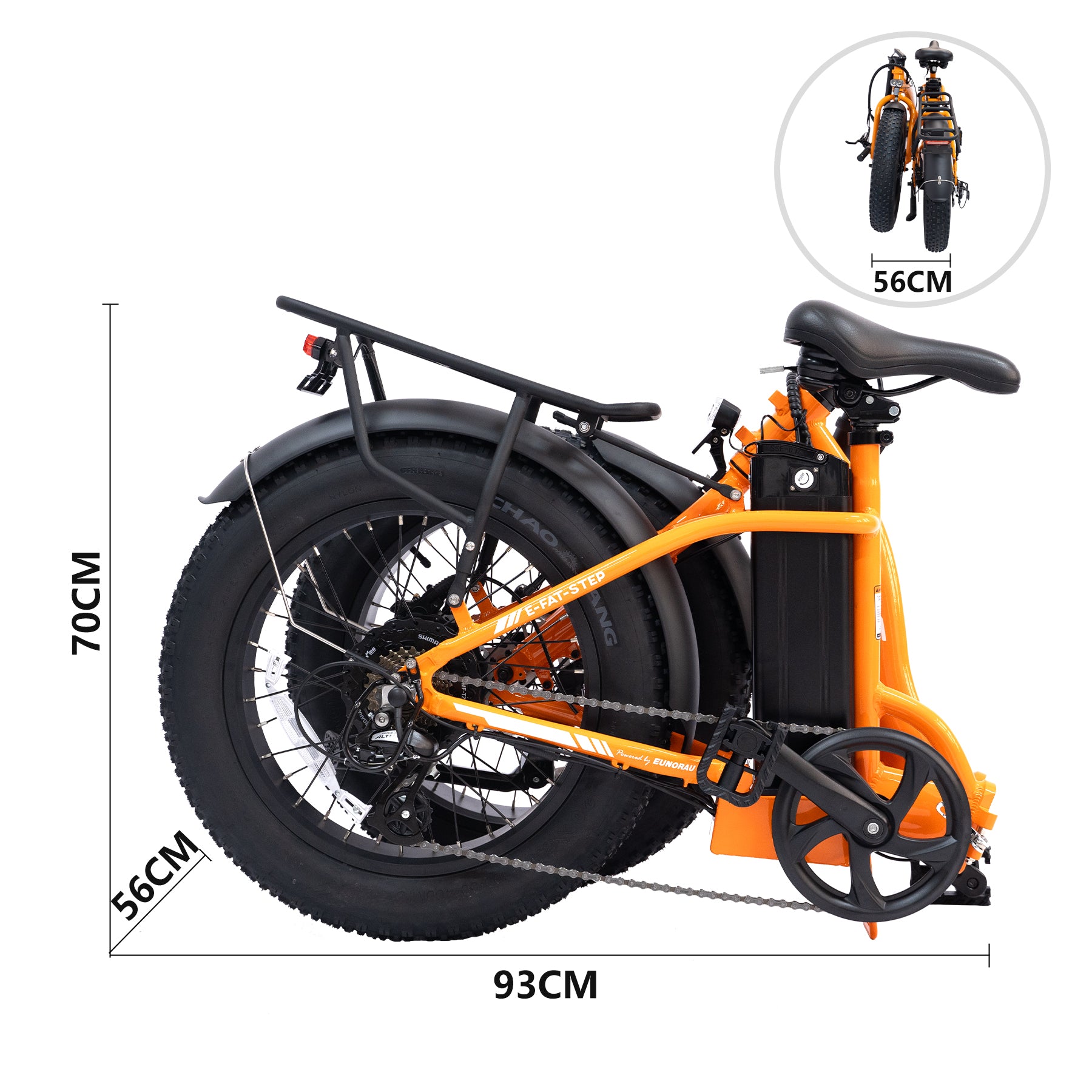

Foldable Frame
Having a folding feature on the main frame tube and telescoping stem, the trike is able to fold, and be stored away.
Features
Specification
- Battery: 48V/12.5Ah
- Range: 40-50 Miles

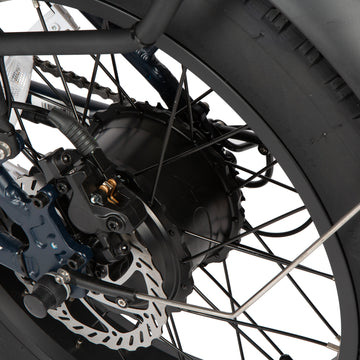

- Motor: 48V/500W Brushless hub motor with 80 N.m torque
- Total Payload Capacity: 330 lbs
- Recommended Rider Heights: 5'6" ~ 6'1"
- Maximum Speed: 20 MPH
- Charger: US standard 2.0 A smart charger
- Controller: 48V 20A
- Display: K-LCD5 Panel
- Weight: 63lbs / 28.5kgs
- Pedal Assist Intelligent: 0~5 level pedal assist
- Box Dimensions: (cm) 98 L x 48 W x 72 H
Components
- Tires: KENDA/CHAOYANG sport tires 20" x 4.0"
- Brake lever: Eunorau hydraulic disc Lever with motor cutoff switch

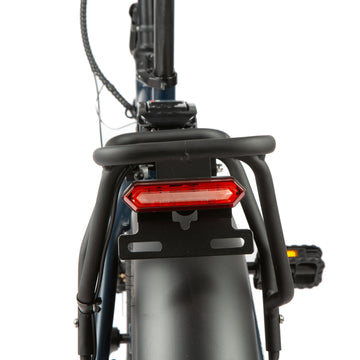

- Rear Light: Super bright tallight controlled via display
- Shifter: Shimano 7 speed gear shift system

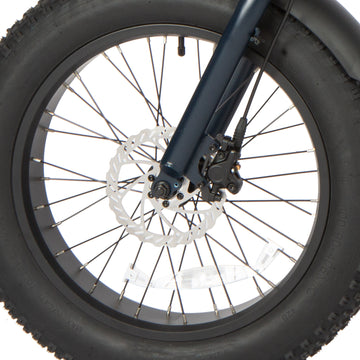

- Brake Rotor: Eunorau 160 MM hydraulic disc brake
- Throttle: Thumb throttle

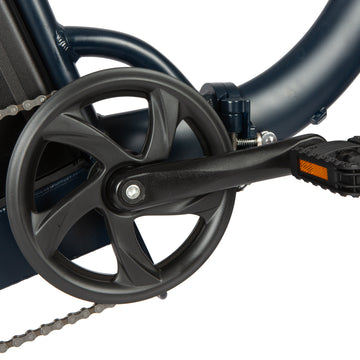

- Crank: 170mm forged aluminum alloy
- Freewheel: Shimano altus 7 speed rear derailleur
- Handlebar: Adjustable stem for comfort
- Frame: Aluminum alloy
- Stem: Telescoping height, 260mm base with 140mm extension, 10mm spacer, 25.4mm clamp diameter
- Pedal: High-Quality folding nylon pedals

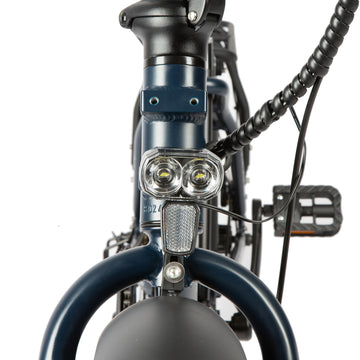

- Front Light: LED light
- Saddle: Comfort saddle, Height to Ground 32.2"-39.4"
- Tool: Included
- Chainring: 48T chain-wheel crank
- Rims: 20inch black alloy
Geometry
